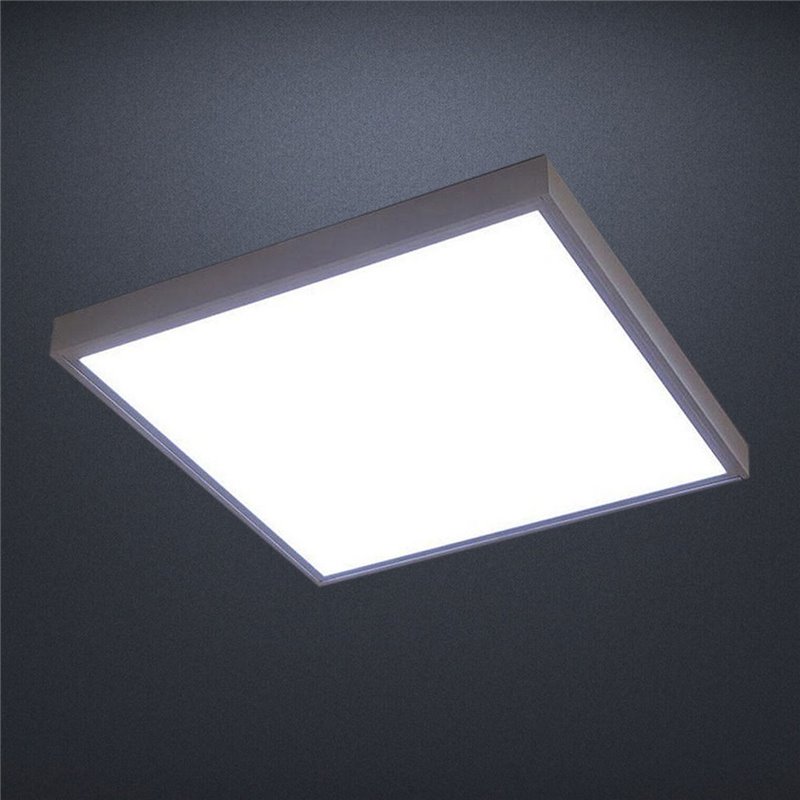

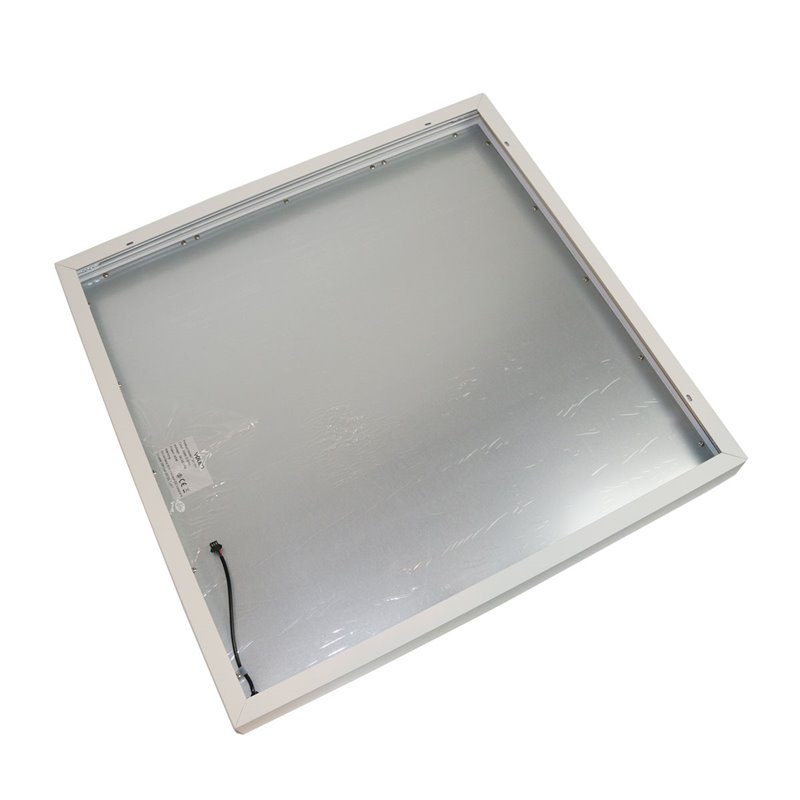

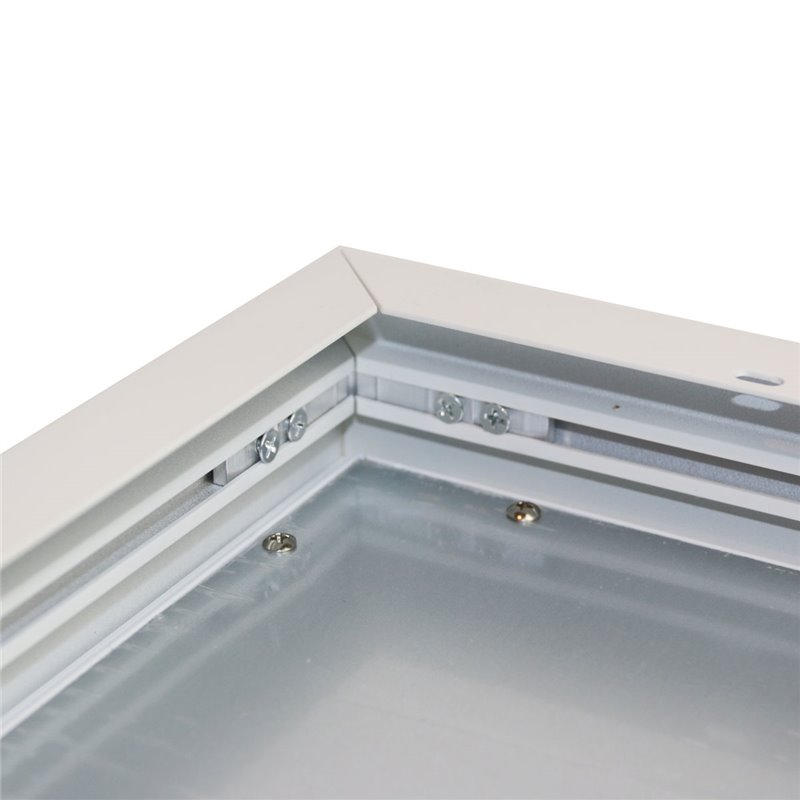

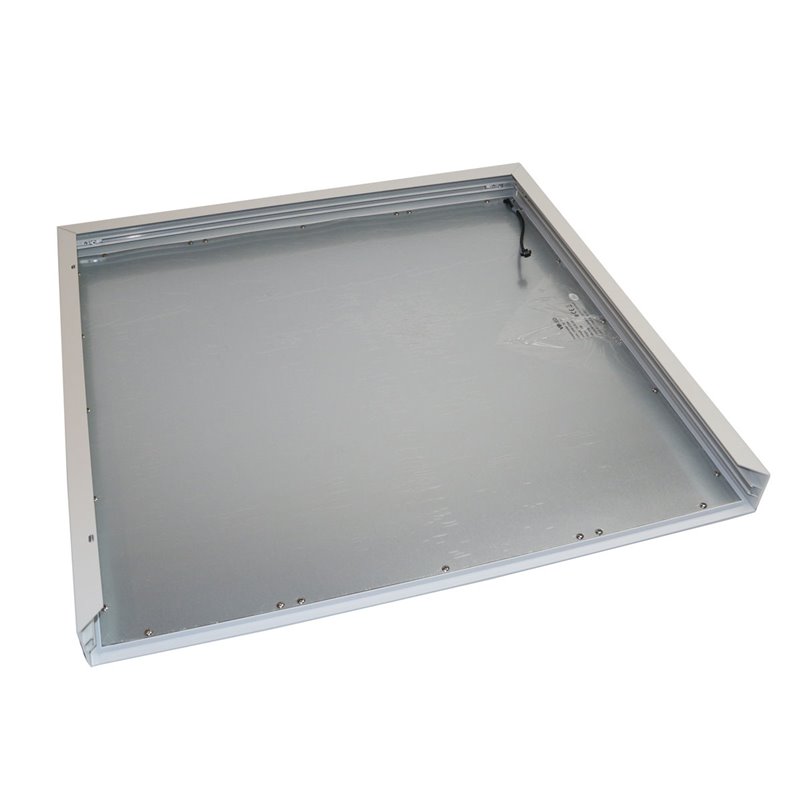

This mounting frame set allows easy and comfortable ceiling installation of your 62 x 62 cm LED panel with a thickness of up to 2 cm. It consists of 4 aluminum profiles, which are screwed together to form a 5 cm high frame and enclose the panel flush. On the back of the aluminum strips are holes to conveniently install the surface-mounted frame on the ceiling or the more unusual installation option to mount the panel on the wall - this is also easy to do with the surface-mounted frame. Alternatively, the rope suspension can be attached to the frame and the panel can thus be installed as a pendant light.

Wall/Decor mounting:

Three sides of the frame are screwed together and mounted on the ceiling using screws and dowels. Then the panel is pushed in and the last side is closed.

Mounting as a hanging luminaire:

Three sides of the frame are screwed together. Then the panel is pushed in and the last side is closed. Then the rope suspension is attached to the holes.

Another advantage of mounting your LED panel with the surface-mounted frame: The transformer can be installed inconspicuously in the cavity created between the panel and the ceiling.
