LED transformer constant current, 10W, 6-15VDC 700mA dimmable
  • LED transformer constant current, 10W, 6-15VDC 700mA dimmable
  • LED transformer constant current, 10W, 6-15VDC 700mA dimmable
LED transformer constant current, 10W, 6-15VDC 700mA dimmable
LED transformer constant current, 10W, 6-15VDC 700mA dimmable LED transformer constant current, 10W, 6-15VDC 700mA dimmable

LED transformer constant current, 10W, 6-15VDC 700mA dimmable

41020D

LED transformer constant current, 10W, 6-15VDC 700mA dimmable

$100.00
Quantity

Ask a Quote
  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

Constant current LED power supply 700mA (suitable for 2-4 mini spots 3W).

Output voltage 6-15V DC.

After switching on, the light turns on in less than <0.5 sec.

The connection is very simple via screw terminals

The power supply is dimmable e.g. for LED Minispots, Downlights, etc.

Compatible with LED dimmer Art.Nr.43029,43031, Compatible with 3W minispots: Art.No.83042, 83049.

Controlled by phase cut-off technology

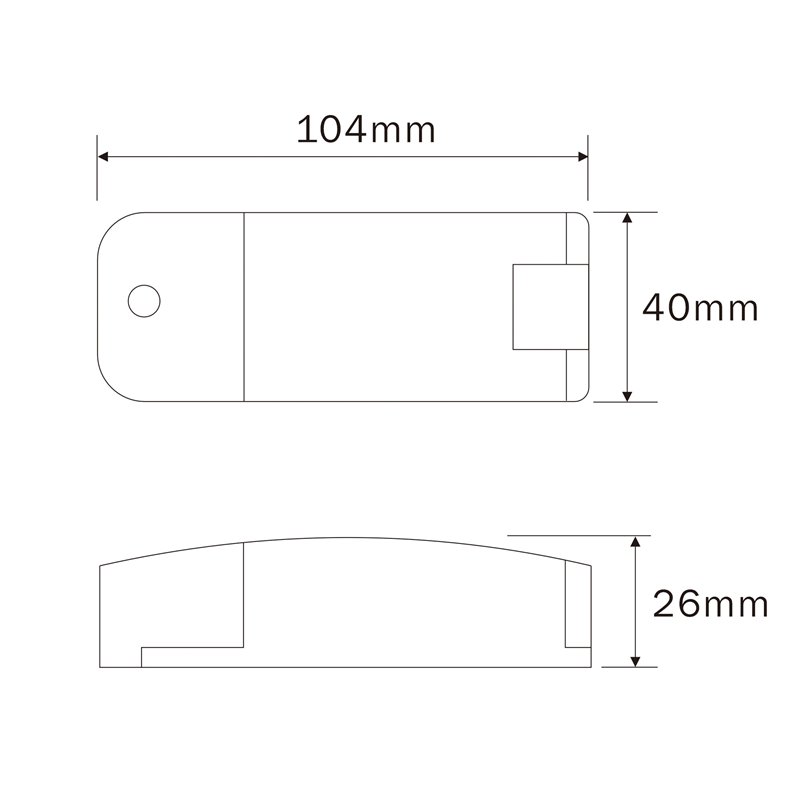

Product dimensions: 104mm x 40mm x 26mm

Product Details
41020D
100 Items

Data sheet

Input Voltage
230V AC
Output Voltage
6-15V DC
Product Size
104mm x 40mm x 26mm
Output Current
700mA
