Constant current LED driver 350mA / 700mA two options, including 3-level dimming 10%-50%-100%

Constant current LED driver 350mA / 700mA two options, including 3-level dimming 10%-50%-100%

41003

Constant current LED driver 350mA / 700mA two options, including 3-level dimming 10%-50%-100%.

$100.00
Quantity

Ask a Quote
  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

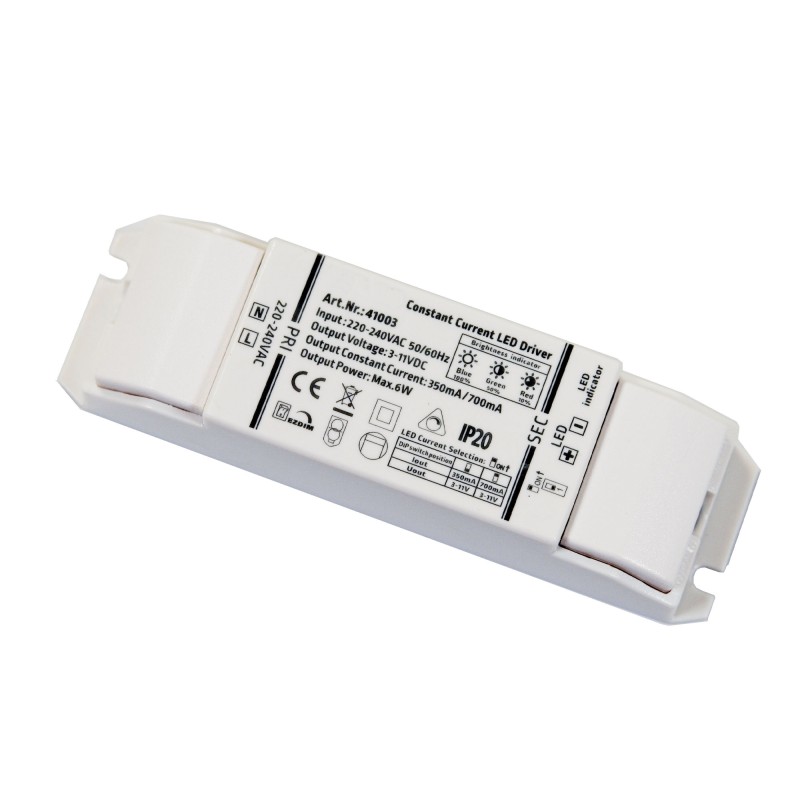

LED transformer for operation of constant current LEDs, integrated 3-step dimmer.

Input voltage 230V AC 50/60Hz;

Output voltage&current: 3-11VDC@350mA, 3-11VDC@700mA.

You can switch between 350mA and 700mA with DIP switch.

Compatible with 1-3PCS 1W mini spot (constant current 350mA). No other mini spots can be connected.

Compatible with 1-3PCS 3W Mini-Spots (constant current 700mA). No other mini spots can be connected.

3 levels dimming 10%-50%-100%, PWM dimming.

At the output of the power supply there are LEDs for the operating status, blue 100% brightness, green 50% brightness, red 10% brightness.

Easy connection via screw terminals # Dimensions: 105x30x22 mm

IP20 for indoor use only

Product Details
41003
100 Items

Data sheet

Input Voltage
100-240V AC
Output Voltage
3-11V DC
Dimmable
10%-50%-100%
IP Class
IP20
Product Size
105x30x22 mm
Output Current
350mA & 700mA
