13W LED recessed luminaire Ocean II R / warm white 3000K

13W LED recessed luminaire Ocean II R / warm white 3000K

SKU 83004

Brand TECRICO

$100.00

Quantity

Ask a Quote

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Description
Product Details

Description

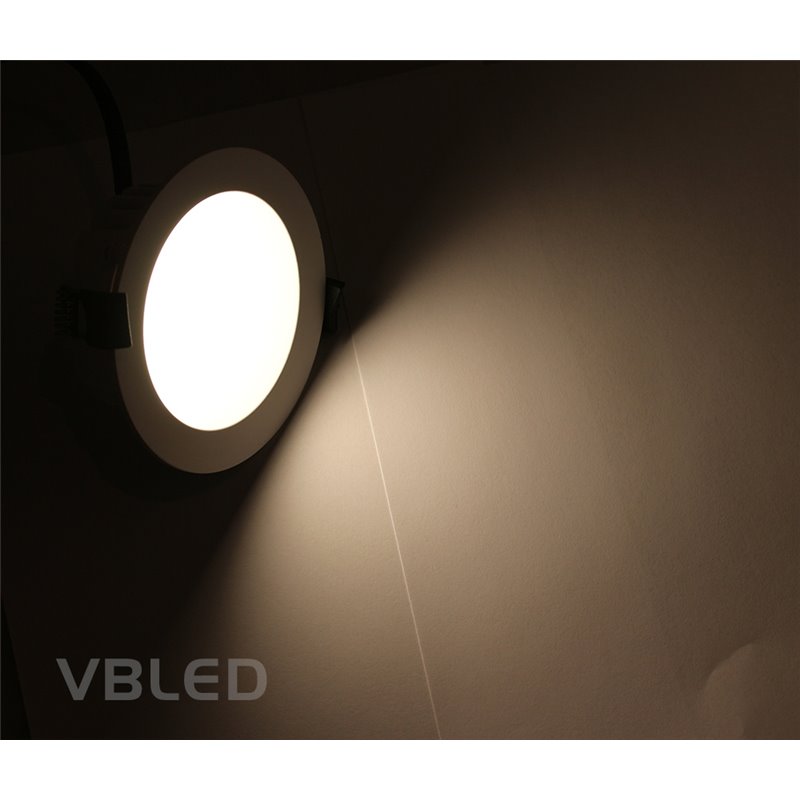

Modern, extra flat and powerful 230V recessed spotlight: This dimmable LED recessed spotlight is made for installation locations where only a small installation depth is available, but still a lot of light is needed.

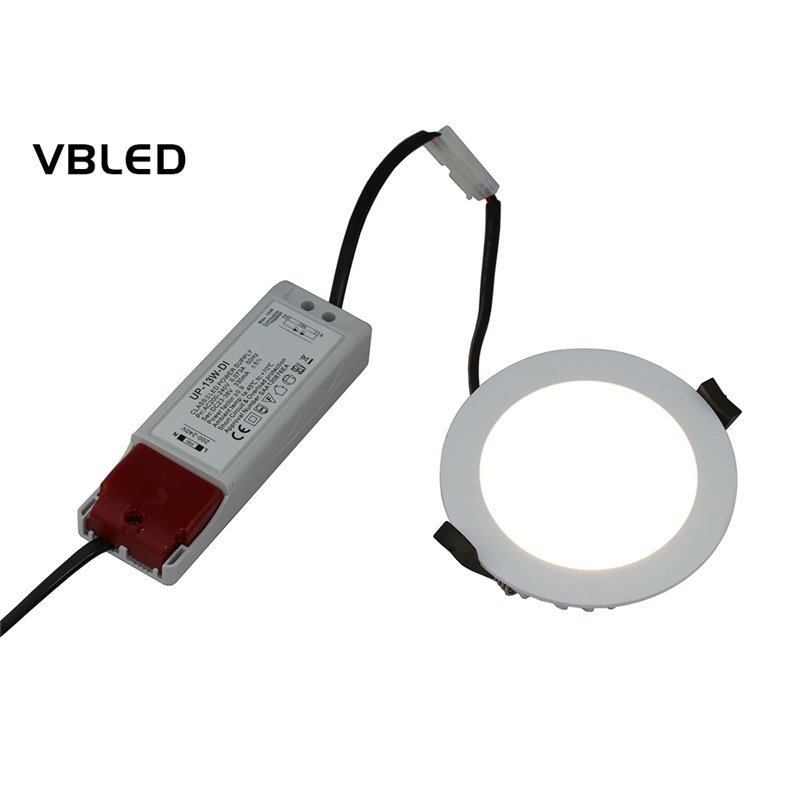

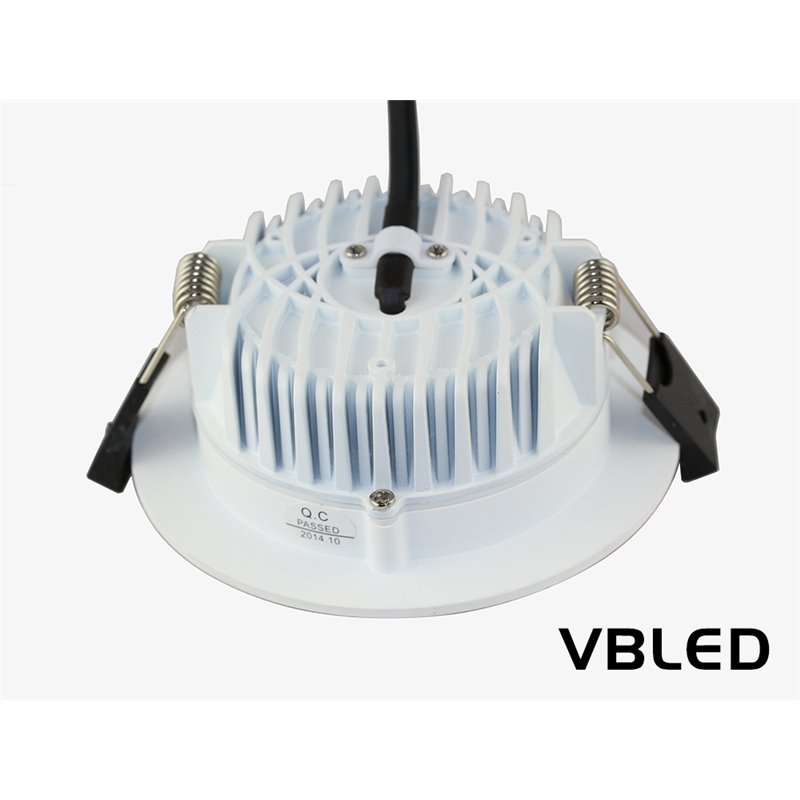

If something is to be illuminated particularly well - this light does it with flying colors and fits well in any place due to the simple design. Due to the mounting with clamping springs, the installation in hollow ceilings is very simple. The enclosed transformer is connected to the lamp by plug and only requires a direct connection to 230V. A large beam angle of approx. 90° rounds off the advantages of this LED luminaire.

DATA LUMINAIRE // Power: Consumption of 13W with 850 lumens of power, equivalent to about 90W compared to high-voltage halogen - Beam angle: 90 ° - Light color: warm white (3000k) - Lifetime: about 30,000 hours - DIMMABLE - Illuminant NOT EXCHANGEABLE! - CE mark of conformity - IP44 protection class (protection against splashing water) - Material: die-cast aluminum (frame) and polycarbonate (shielding for reduced glare)

DIMENSIONS LUMINAIRE // Outer dimension: 100x100 mm (square) & 100 mm (round) - Hole size: 85-90 mm - Construction height/thickness of the frame: approx. 2 mm - Pure material installation depth of the luminaire: approx. 35 mm - Required cavity (without ceiling thickness) for the transformer: approx. 30 mm - Required total installation depth (lower edge of the ceiling to the end of the luminaire in the cavity) depends on the ceiling thickness, with standard 12.5 mm Rigips e.g.: 40 mm. DIMENSIONS TRAFO: 103 mm (L) x 38 mm (W) x 25 mm (H)
