Description

PRODUCT INFORMATION ""EZDIM" 3 STEP LED DIMMER 12V-24V DC 3A MAX FOR DIMMABLE LED LIGHT".

Input voltage 12V-24V DC, output 12V-24V DC, max. load 3A, 36W@12V, 72W@24V

Easy Dim with switch: turn off the power supply and turn on again in the time of 2 - 5 seconds. This will make the dimmer change the power from 100% to 50% or from 50% to 10% or from 10% to 100%, PWM dimming.

Suitable for 12V-24V DC dimmable LED lights, such as strip lights, under cabinet lights.

Small and compact size can be easily mounted or hidden.

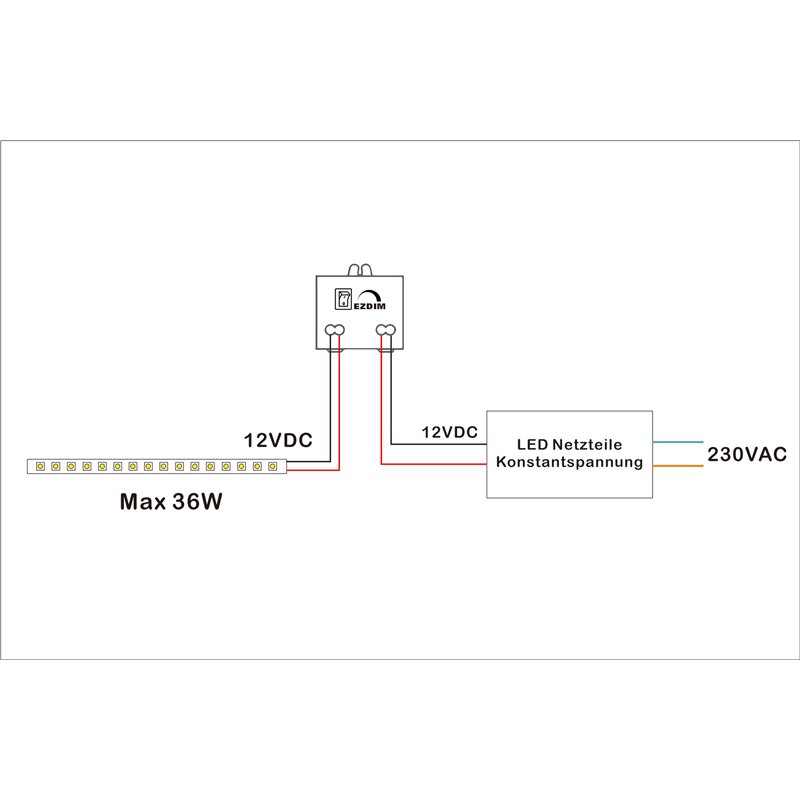

Dimmer should be installed between LED driver and LED lamp,

LED driver must have constant voltage and 12V-24V DC output.

This dimmer is not compatible with constant current LED driver!

The on/off switch can be installed before the LED driver or after the LED driver.

Product Details
43040
100 Items

Data sheet

Input Voltage
12V-24V DC
Output Voltage
12V-24V DC
Dimmable
10%-50%-100%
Max Power
max. load 3A, 36W@12V, 72W@24V
IP Class
IP20

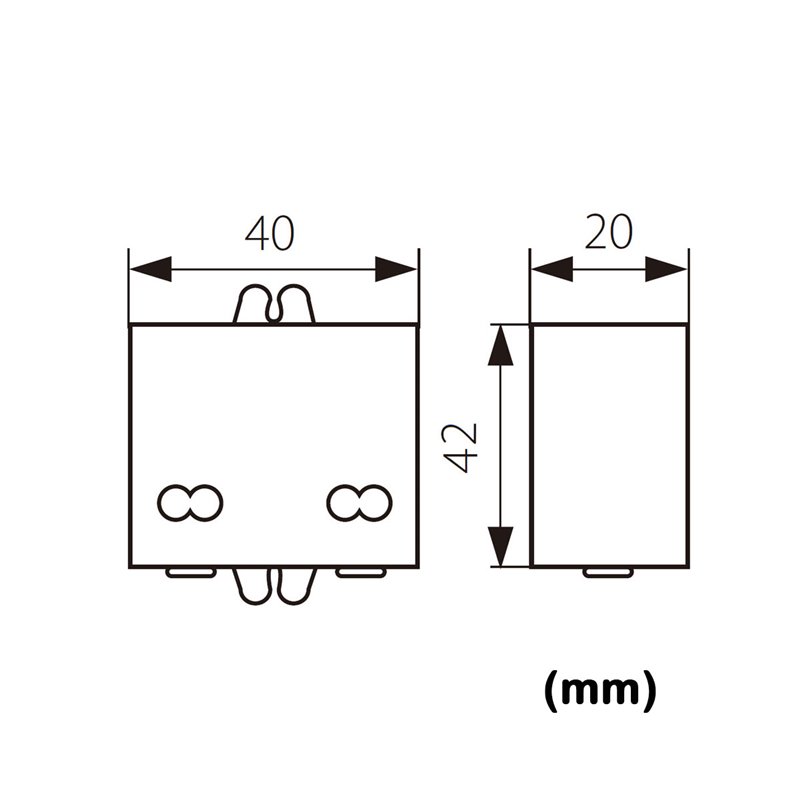

Product Size
40*42*20MM
