Description

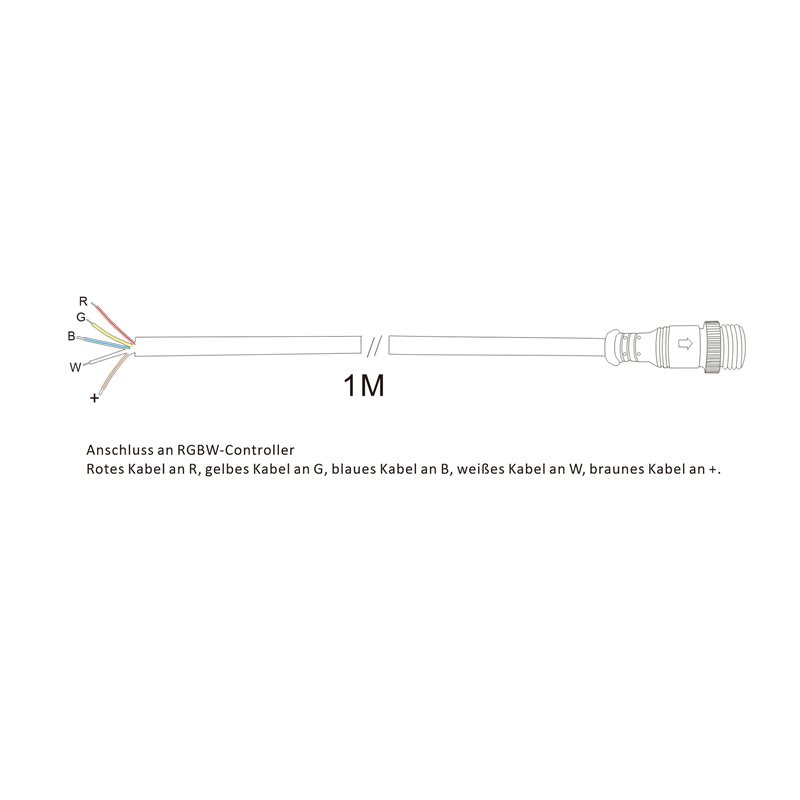

RGBW cable 5x0,35mm² + 1Meter - black

This cable is optimal suitable for our 4in1 RGBW LED strips. All color wires power (RGB and white) have a diameter of 0.35mm². For the common voltage supply (common plus) there is 1,0mm² available. This cable has a PVC jacket and is therefore more flexible than the halogen-free version.

Scope of delivery: RGBW cable - length according to your quantity specification.

This cable is designed for 83045S and 83058.

Note

It can be difficult to solder the common plus wire with 1.0mm² cross section to the sometimes quite narrow solder pads of the LED strip. 2 solutions are available here:

1. after you have stripped the 1.0mm² wire, cut off about half of the individual copper wires again at this end. The now significantly reduced cross-section of the cable is much easier to solder to the LED strip.

2. take a short piece (10cm) of wire with a smaller cross-section, e.g. 0.5mm². Solder this to the LED strip and then connect it to the 1.0mm² positive wire of the RGBW cable. For the connection you can use a WAGO clamp or you lead both cables into a wire end sleeve, crimp them and push (before!) a heat shrink tubing over for insulation.

Max. Current load: 10A total, 3.5A per channel

Temperature range: -5° to +70°C

Outer diameter: 7mm

PVC sheathing
