ALDYNE" - LED Mini Spot - 1W - 350 mA constant current

The extra small, powerful and modern LED Mini Spot / recessed spot with 350mA.

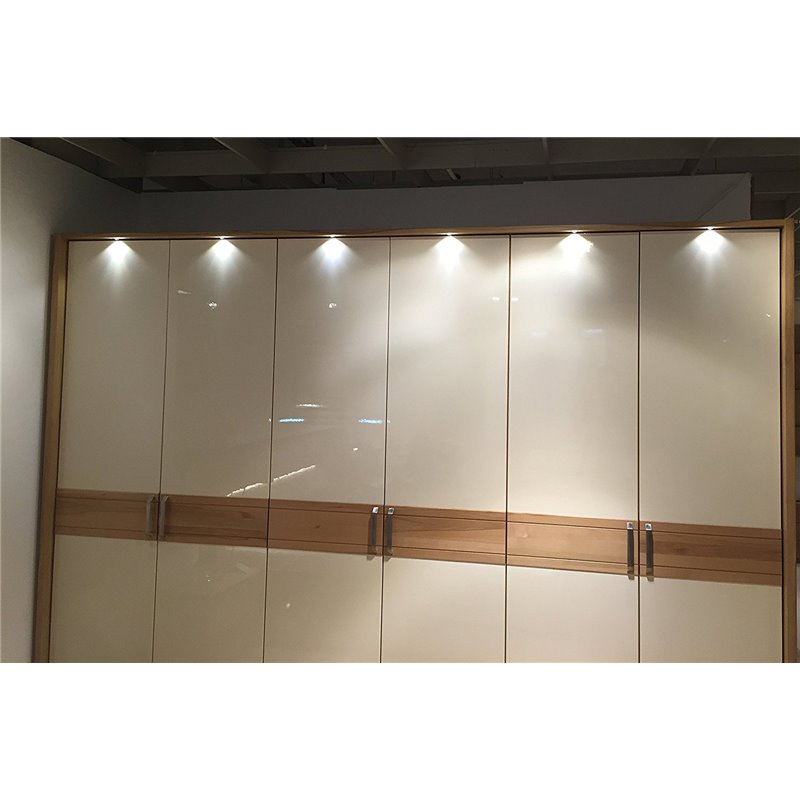

Ideal for installation locations where there is limited space for installation or when accent lighting is required.

This LED recessed spot fits perfectly in any place thanks to its simple design. Installation is very easy thanks to the clamping springs in ceilings. The LED recessed spotlights each have a 50cm input cable (red) and an output cable (black).

1W - 350mA constant current - 80 lumens - IP44 - 3V DC - 3000K warm white - beam angle: 60°.

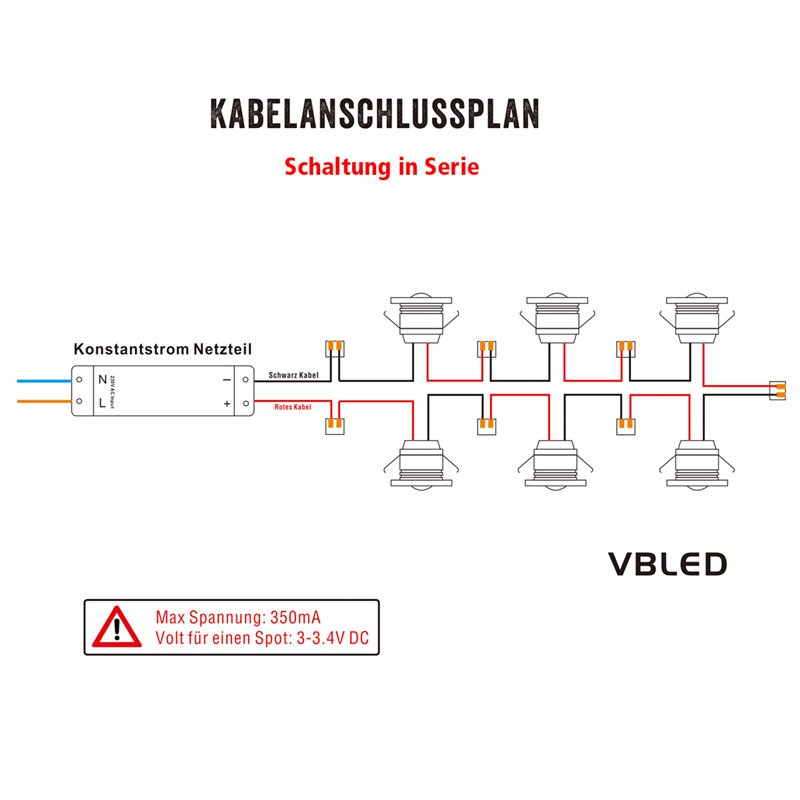

Series connection with 350mA constant current (Please check the LED Mini Spot constant current cable diagram and find the right LED driver for the mini spots)

0 - 100% Dimmable (Only with dimmable LED driver)

For separate control of the spotlights in vers. Groups, a separate power supply is needed for each group. One remote control has four channels and can therefore control up to four different power supplies - and thus Minispot groups.

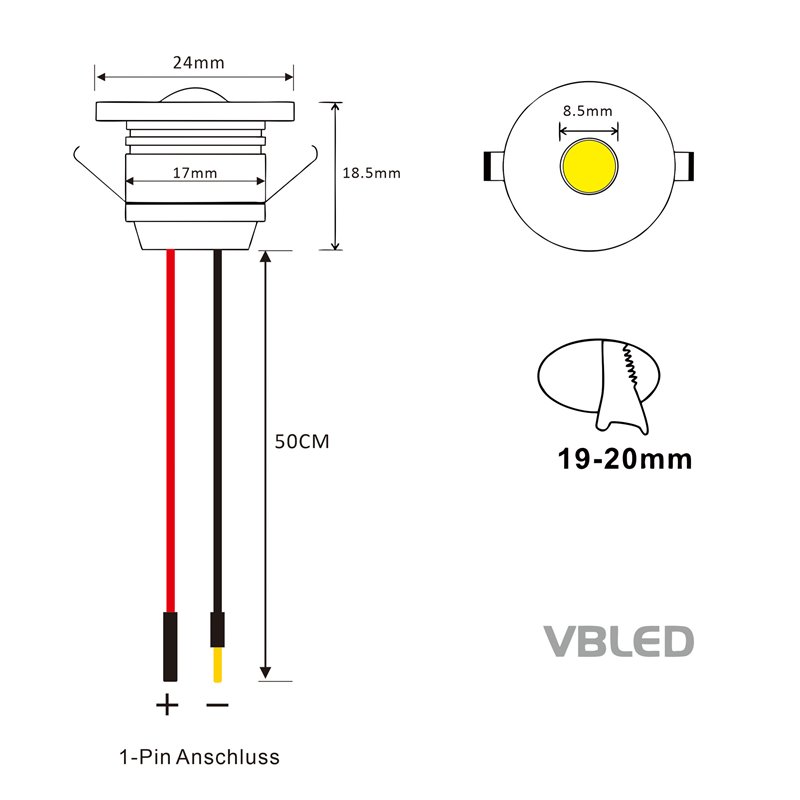

Dimensions: 24mm x 18,5mm - hole: 19mm - 20mm

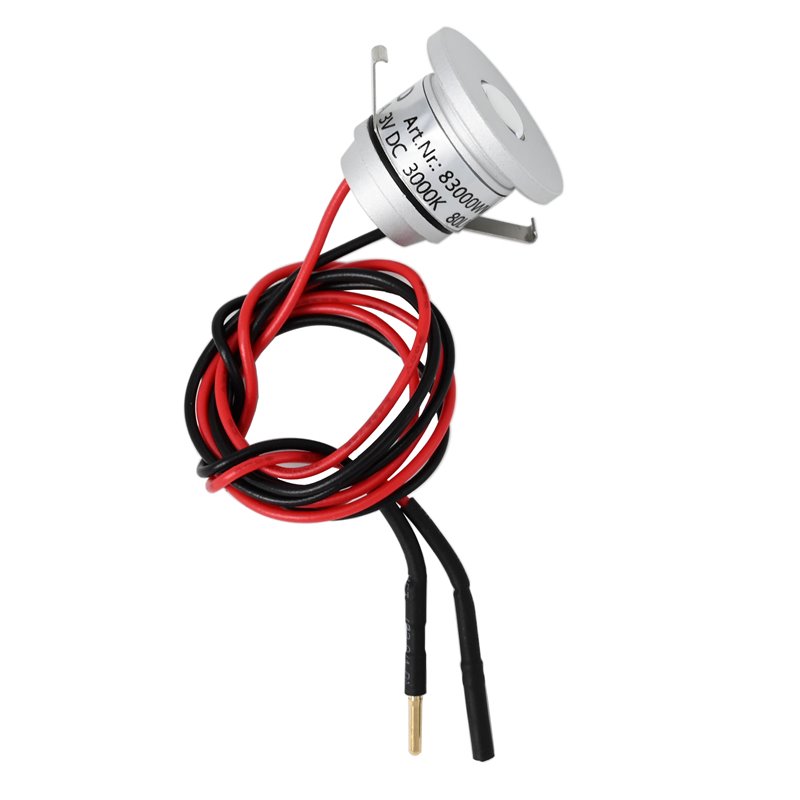

With 1-pin connector for easy installation - Lifetime: approx. 30,000 hours - Material: aluminum

Here you can find a PDF catalog for all our 1W and 3W mini LED spots.

Here is a video showing how to connect LED mini spots with LED drivers.
